Variable-Speed Fans
ECM fans modulate airflow in response to the control signal, matching fan operation to changing cooling demand.
Common Specifications
Specifications and configuration options.

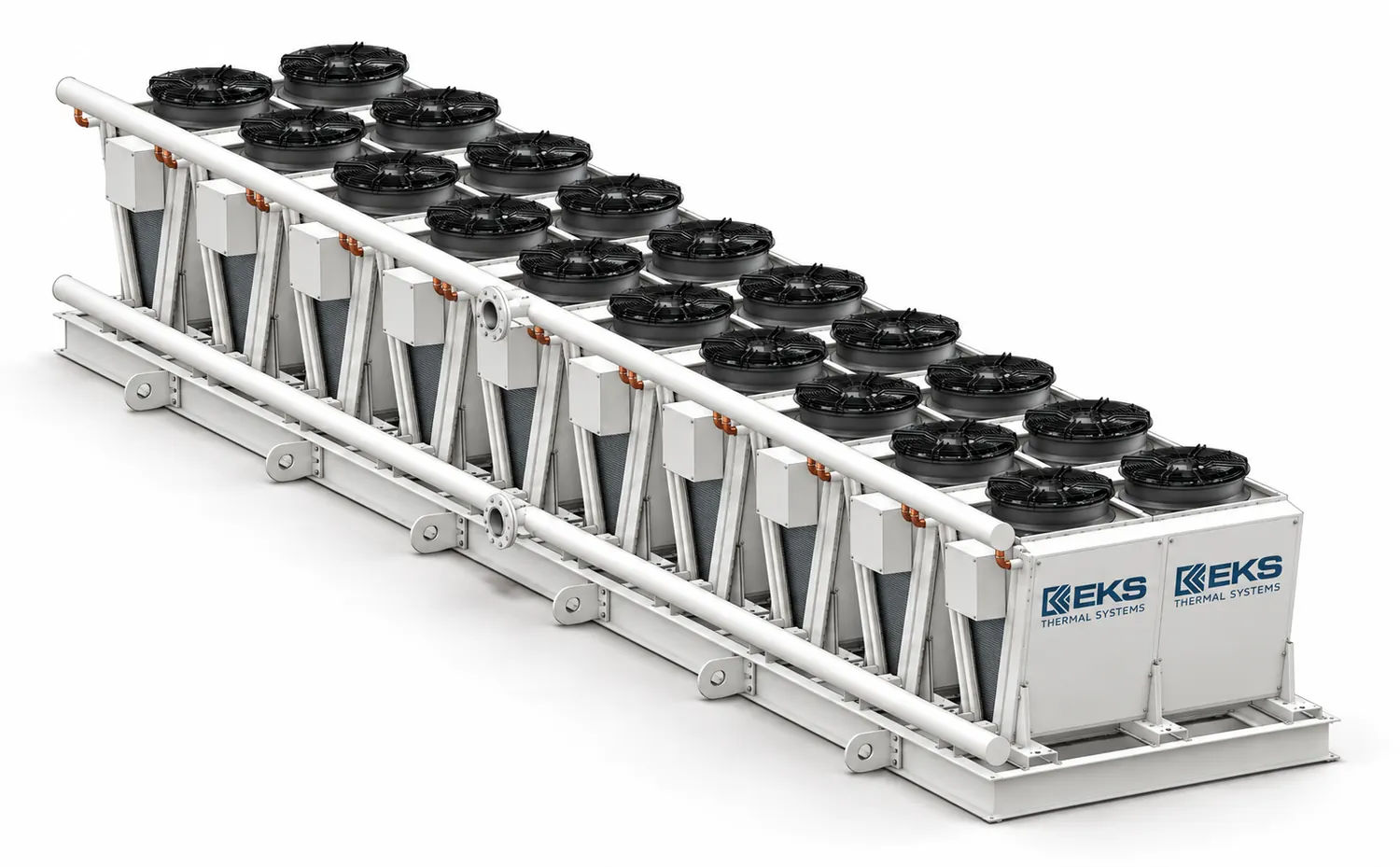

We select the coil, fan array, and fluid connections around your operating conditions, with a structural base designed for rigging and placement.
| Fan Technology | Variable-speed, direct-drive ECM fans |
|---|---|
| Coil Construction | Copper tubes with aluminum fins |
| Coil Casing | Aluminum |
| Structural Base | Painted, welded structural steel |
| Control Panel | UL 508A Listed |
| Fan Speed Control | 0–10 VDC or 4–20 mA signal supplied by others |
| Available Options | Protective coil coating, main non-fused disconnect switch, and custom configurations |
Product SpecificationsSpec Sheet Coming Soon
Need specifications now? Email Our Team →
Design Features
Controlled airflow. Practical construction.
Copper and Aluminum Coils
Copper tubes and aluminum fins provide the heat-transfer surface. Protective coil coatings are available as an option.
Structural Steel Base
A welded steel base with lifting points supports equipment handling, rigging, and placement.
Applications
Heat rejection for demanding fluid loops.
Data Centers
Outdoor fluid cooling for compute cooling loops, selected for the required heat rejection and fluid temperatures.
Process Fluid Cooling
Air-cooled heat rejection for process loops where the fluid temperature and ambient conditions support dry cooling.
Custom Configurations
Discuss your fluid, flow rate, temperature targets, footprint, and controls requirements with our team.
Discuss your project.
Share your heat load, fluid type and concentration, flow rate, entering and leaving temperatures, design ambient, and available footprint.
